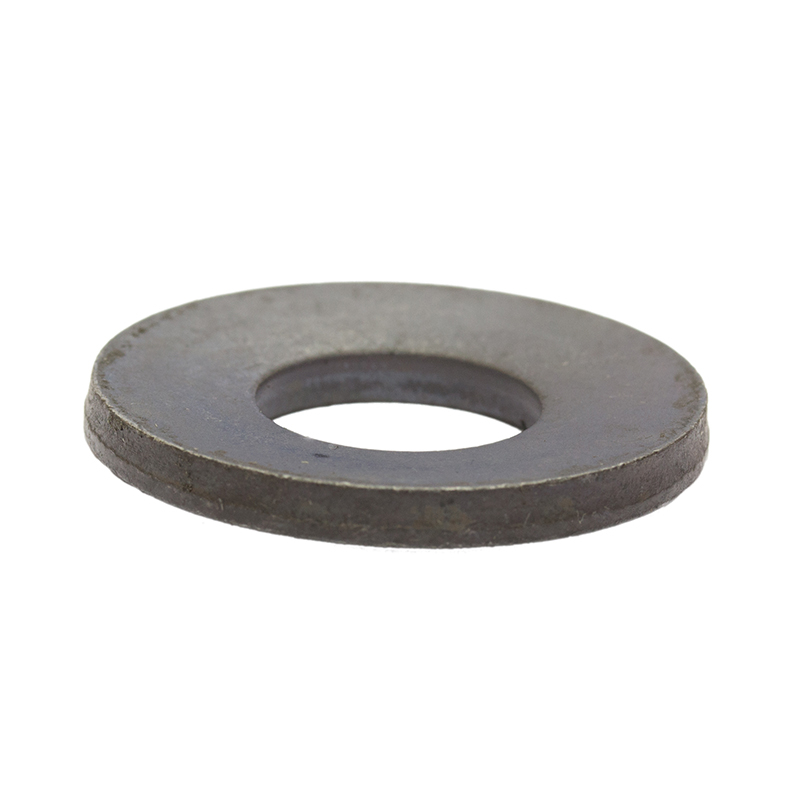

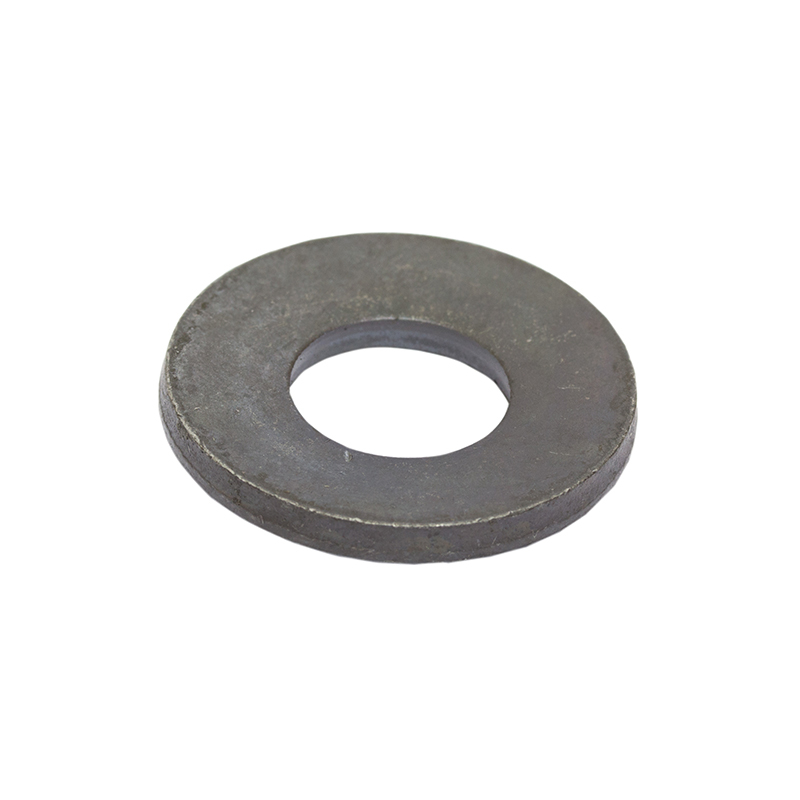

Image for illustration purposes only

Conical Locking Washers

Descriptions

Conical Locking washers – also referred to as Belleville washers – are spring washers typically used in heavy bolted applications, such as bus bars, transformers and flanges, etc. They are suitable for use with 8.8 high tensile bolts. Conical locking washers are designed to be able to take up movement in line with the fixing bolt, to compensate for temperature fluctuations or settlement of the bolt over time.

Conical Locking Washers have a very good range of I/D, O/D and thickness combinations that enable this range a wide choice of heavy duty bolted applications.

Pinstructure offers Contact Washers to DIN6796, in sizes 2mm to 30mm. We offer the following materials and finishes from stock:

Carbon Spring Steel (Self-colour, Mechanical Zinc Plated, and Geomet finishes) Series F66A
A2 Stainless Steel Series F66D
A4 Stainless Steel Series F66V

Further sizes available, please enquire.

They are also available with plain or knurled contact surfaces and in a variety of materials and finishes. A very useful and versatile washer.
